MAST::TimeDomainFlutterSolver Class Reference

Detailed Description

This implements a solver for a single parameter instability problem, for example a flutter solver where flight speed is the primary parameter.

Definition at line 44 of file time_domain_flutter_solver.h.

#include <time_domain_flutter_solver.h>

Inheritance diagram for MAST::TimeDomainFlutterSolver:

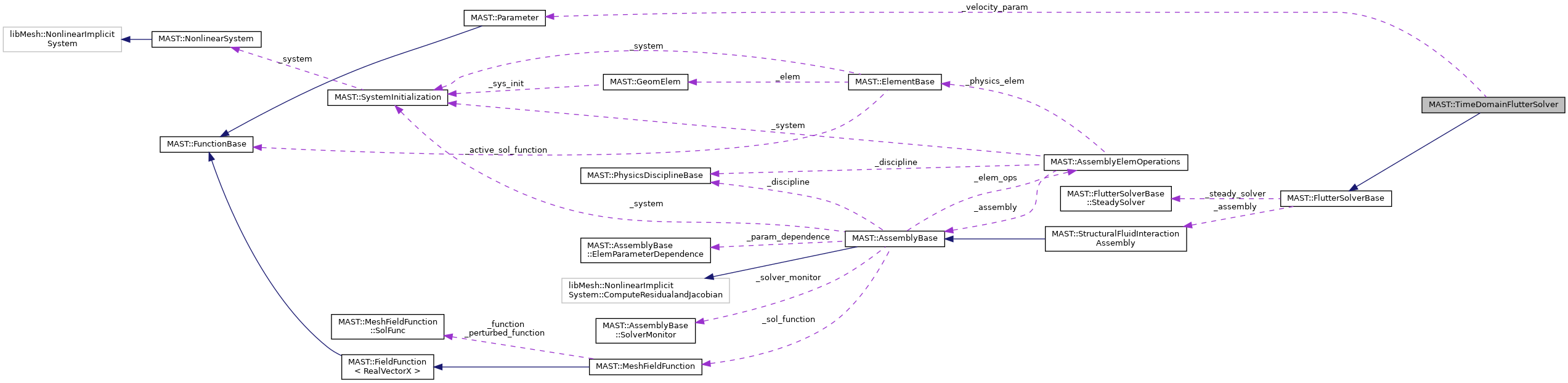

Collaboration diagram for MAST::TimeDomainFlutterSolver:

Public Member Functions

 TimeDomainFlutterSolver ()
 defalut constructor More...

virtual ~TimeDomainFlutterSolver ()

virtual std::pair< bool, MAST::FlutterRootBase * > analyze_and_find_critical_root_without_tracking (const Real g_tol, const unsigned int n_iters)
 This root starts with the lower velocity and increments the speed till a single unstable root is identified. More...

virtual void calculate_sensitivity (MAST::FlutterRootBase &root, const MAST::FunctionBase &f, libMesh::NumericVector< Real > *dXdp=nullptr, libMesh::NumericVector< Real > *dXdV=nullptr)
 Calculate the sensitivity of the flutter root with respect to the f parameter. More...

virtual void clear ()
 clears the solution and other data from this solver More...

virtual void clear_solutions ()
 clears the solutions stored from a previous analysis. More...

virtual std::pair< bool, MAST::FlutterRootBase * > find_critical_root (const Real g_tol, const unsigned int n_bisection_iters)
 This method checks if the flutter root corresponding to the lowest velocity crossover has been calculated. More...

virtual std::pair< bool, MAST::FlutterRootBase * > find_next_root (const Real g_tol, const unsigned int n_bisection_iters)
 Looks through the list of flutter cross-over points and iteratively zooms in to find the cross-over point. More...

const MAST::FlutterRootBaseget_root (const unsigned int n) const
 returns the n th root in terms of ascending velocity that is found by the solver More...

void initialize (MAST::Parameter &velocity_param, Real V_lower, Real V_upper, unsigned int n_V_divs, std::vector< libMesh::NumericVector< Real > *> &basis)
 initializes the data structres for a flutter solution. More...

virtual unsigned int n_roots_found () const
 finds the number of critical points already identified in the procedure. More...

virtual void print_crossover_points ()
 Prints the crossover points output. More...

virtual void print_sorted_roots ()
 Prints the sorted roots to the output. More...

virtual void scan_for_roots ()
 Scans for flutter roots in the analyzed points, and identified the divergence (if k_red = 0. More...

- Public Member Functions inherited from MAST::FlutterSolverBase
 FlutterSolverBase ()
 defalut constructor More...

virtual ~FlutterSolverBase ()

void attach_assembly (MAST::StructuralFluidInteractionAssembly &assembly)
 attaches the assembly object to this solver. More...

void attach_steady_solver (MAST::FlutterSolverBase::SteadySolver &solver)
 attaches the steady solution object More...

virtual void clear_assembly_object ()
 clears the assembly object More...

void initialize (std::vector< libMesh::NumericVector< Real > *> &basis)
 initializes the data structres for a flutter solution. More...

void set_output_file (const std::string &nm)


Protected Member Functions

virtual std::unique_ptr< MAST::TimeDomainFlutterSolution_analyze (const Real v_ref, const MAST::FlutterSolutionBase *prev_sol=nullptr)
 performs an eigensolution at the specified reference value, and sort the roots based on the provided solution pointer. More...

virtual std::pair< bool, MAST::FlutterSolutionBase * > _bisection_search (const std::pair< MAST::FlutterSolutionBase *, MAST::FlutterSolutionBase *> &ref_sol_range, const unsigned int root_num, const Real g_tol, const unsigned int max_iters)
 bisection method search More...

virtual void _identify_crossover_points ()
 identifies all cross-over and divergence points from analyzed roots More...

void _initialize_matrices (Real U_inf, RealMatrixX &A, RealMatrixX &B)
 Assembles the reduced order system structural and aerodynmaic matrices for specified flight velocity U_inf. More...

void _initialize_matrix_sensitivity_for_param (const MAST::FunctionBase &f, const libMesh::NumericVector< Real > &dXdp, Real U_inf, RealMatrixX &A, RealMatrixX &B)
 Assembles the reduced order system structural and aerodynmaic matrices for specified flight velocity U_inf. More...


Protected Attributes

std::multimap< Real, MAST::FlutterRootCrossoverBase * > _flutter_crossovers
 the map of flutter crossover points versus average velocity of the two bounding roots More...

std::map< Real, MAST::FlutterSolutionBase * > _flutter_solutions
 map of velocity sorted flutter solutions More...

unsigned int _n_V_divs
 number of division in the reference value range for initial scanning More...

std::pair< Real, Real_V_range
 range of reference values within which to find flutter roots More...

MAST::Parameter_velocity_param
 Parameter that define the velocity. More...

- Protected Attributes inherited from MAST::FlutterSolverBase
MAST::StructuralFluidInteractionAssembly_assembly
 structural assembly that provides the assembly of the system matrices. More...

std::vector< libMesh::NumericVector< Real > * > * _basis_vectors
 basis vector used to define the reduced order model More...

std::ofstream * _output
 file to which the result will be written More...

MAST::FlutterSolverBase::SteadySolver_steady_solver
 object provides the steady state solution. More...


Constructor & Destructor Documentation

◆ TimeDomainFlutterSolver()

MAST::TimeDomainFlutterSolver::TimeDomainFlutterSolver ( )

defalut constructor

Definition at line 34 of file time_domain_flutter_solver.cpp.

◆ ~TimeDomainFlutterSolver()

MAST::TimeDomainFlutterSolver::~TimeDomainFlutterSolver ( )
virtual

Definition at line 44 of file time_domain_flutter_solver.cpp.

Member Function Documentation

◆ _analyze()

std::unique_ptr< MAST::TimeDomainFlutterSolution > MAST::TimeDomainFlutterSolver::_analyze ( const Real  v_ref,
const MAST::FlutterSolutionBase prev_sol = nullptr
)
protectedvirtual

performs an eigensolution at the specified reference value, and sort the roots based on the provided solution pointer.

If the pointer is nullptr, then no sorting is performed

Definition at line 640 of file time_domain_flutter_solver.cpp.

◆ _bisection_search()

std::pair< bool, MAST::FlutterSolutionBase * > MAST::TimeDomainFlutterSolver::_bisection_search ( const std::pair< MAST::FlutterSolutionBase *, MAST::FlutterSolutionBase *> &  ref_sol_range,
const unsigned int  root_num,
const Real  g_tol,
const unsigned int  max_iters
)
protectedvirtual

bisection method search

Definition at line 568 of file time_domain_flutter_solver.cpp.

◆ _identify_crossover_points()

void MAST::TimeDomainFlutterSolver::_identify_crossover_points ( )
protectedvirtual

identifies all cross-over and divergence points from analyzed roots

Definition at line 822 of file time_domain_flutter_solver.cpp.

◆ _initialize_matrices()

void MAST::TimeDomainFlutterSolver::_initialize_matrices ( Real  U_inf,
RealMatrixX A,
RealMatrixX B
)
protected

Assembles the reduced order system structural and aerodynmaic matrices for specified flight velocity U_inf.

Definition at line 676 of file time_domain_flutter_solver.cpp.

◆ _initialize_matrix_sensitivity_for_param()

void MAST::TimeDomainFlutterSolver::_initialize_matrix_sensitivity_for_param ( const MAST::FunctionBase f,
const libMesh::NumericVector< Real > &  dXdp,
Real  U_inf,
RealMatrixX A,
RealMatrixX B
)
protected

Assembles the reduced order system structural and aerodynmaic matrices for specified flight velocity U_inf.

Definition at line 754 of file time_domain_flutter_solver.cpp.

◆ analyze_and_find_critical_root_without_tracking()

std::pair< bool, MAST::FlutterRootBase * > MAST::TimeDomainFlutterSolver::analyze_and_find_critical_root_without_tracking ( const Real  g_tol,
const unsigned int  n_iters
)
virtual

This root starts with the lower velocity and increments the speed till a single unstable root is identified.

Definition at line 256 of file time_domain_flutter_solver.cpp.

◆ calculate_sensitivity()

void MAST::TimeDomainFlutterSolver::calculate_sensitivity ( MAST::FlutterRootBase root,
const MAST::FunctionBase f,
libMesh::NumericVector< Real > *  dXdp = nullptr,
libMesh::NumericVector< Real > *  dXdV = nullptr
)
virtual

Calculate the sensitivity of the flutter root with respect to the f parameter.

If the base solution has a sensitivity with respect to the parameter, then that should be provided through dXdp. The sensitivity solution also requires sensitivity of the eigenvalue wrt velocity, which is defined as a parameter. Hence, the sensitivity of the static solution is also required wrt the velocity parameter. If dXdV is nullptr, then zero value is assumed.

Definition at line 992 of file time_domain_flutter_solver.cpp.

◆ clear()

void MAST::TimeDomainFlutterSolver::clear ( )
virtual

clears the solution and other data from this solver

Reimplemented from MAST::FlutterSolverBase.

Definition at line 52 of file time_domain_flutter_solver.cpp.

◆ clear_solutions()

void MAST::TimeDomainFlutterSolver::clear_solutions ( )
virtual

clears the solutions stored from a previous analysis.

Definition at line 86 of file time_domain_flutter_solver.cpp.

◆ find_critical_root()

std::pair< bool, MAST::FlutterRootBase * > MAST::TimeDomainFlutterSolver::find_critical_root ( const Real  g_tol,
const unsigned int  n_bisection_iters
)
virtual

This method checks if the flutter root corresponding to the lowest velocity crossover has been calculated.

If not, then it attempts to find that root using an iterative approach

Definition at line 199 of file time_domain_flutter_solver.cpp.

◆ find_next_root()

std::pair< bool, MAST::FlutterRootBase * > MAST::TimeDomainFlutterSolver::find_next_root ( const Real  g_tol,
const unsigned int  n_bisection_iters
)
virtual

Looks through the list of flutter cross-over points and iteratively zooms in to find the cross-over point.

This should be called only after scan_for_roots() has been called. Potential cross-over points are sorted with increasing velocity, and this method will attempt to identify the next critical root in the order.

Definition at line 153 of file time_domain_flutter_solver.cpp.

◆ get_root()

const MAST::FlutterRootBase & MAST::TimeDomainFlutterSolver::get_root ( const unsigned int  n) const

returns the n th root in terms of ascending velocity that is found by the solver

Definition at line 127 of file time_domain_flutter_solver.cpp.

◆ initialize()

void MAST::TimeDomainFlutterSolver::initialize ( MAST::Parameter velocity_param,
Real  V_lower,
Real  V_upper,
unsigned int  n_V_divs,
std::vector< libMesh::NumericVector< Real > *> &  basis
)

initializes the data structres for a flutter solution.

Definition at line 68 of file time_domain_flutter_solver.cpp.

◆ n_roots_found()

unsigned int MAST::TimeDomainFlutterSolver::n_roots_found ( ) const
virtual

finds the number of critical points already identified in the procedure.

Definition at line 108 of file time_domain_flutter_solver.cpp.

◆ print_crossover_points()

void MAST::TimeDomainFlutterSolver::print_crossover_points ( )
virtual

Prints the crossover points output.

If no pointer to output is given then the output defined by set_output_file() is used.

Implements MAST::FlutterSolverBase.

Definition at line 540 of file time_domain_flutter_solver.cpp.

◆ print_sorted_roots()

void MAST::TimeDomainFlutterSolver::print_sorted_roots ( )
virtual

Prints the sorted roots to the output.

Implements MAST::FlutterSolverBase.

Definition at line 468 of file time_domain_flutter_solver.cpp.

◆ scan_for_roots()

void MAST::TimeDomainFlutterSolver::scan_for_roots ( )
virtual

Scans for flutter roots in the analyzed points, and identified the divergence (if k_red = 0.

is specified) and flutter crossover points. The roots are organized in terms of increasing velocity.

Definition at line 425 of file time_domain_flutter_solver.cpp.

Member Data Documentation

◆ _flutter_crossovers

std::multimap<Real, MAST::FlutterRootCrossoverBase*> MAST::TimeDomainFlutterSolver::_flutter_crossovers
protected

the map of flutter crossover points versus average velocity of the two bounding roots

Definition at line 250 of file time_domain_flutter_solver.h.

◆ _flutter_solutions

std::map<Real, MAST::FlutterSolutionBase*> MAST::TimeDomainFlutterSolver::_flutter_solutions
protected

map of velocity sorted flutter solutions

Definition at line 244 of file time_domain_flutter_solver.h.

◆ _n_V_divs

unsigned int MAST::TimeDomainFlutterSolver::_n_V_divs
protected

number of division in the reference value range for initial scanning

Definition at line 238 of file time_domain_flutter_solver.h.

◆ _V_range

std::pair<Real, Real> MAST::TimeDomainFlutterSolver::_V_range
protected

range of reference values within which to find flutter roots

Definition at line 231 of file time_domain_flutter_solver.h.

◆ _velocity_param

MAST::Parameter* MAST::TimeDomainFlutterSolver::_velocity_param
protected

Parameter that define the velocity.

Definition at line 225 of file time_domain_flutter_solver.h.
