MAST::FlutterSolutionBase Class Reference

Detailed Description

Definition at line 38 of file flutter_solution_base.h.

#include <flutter_solution_base.h>

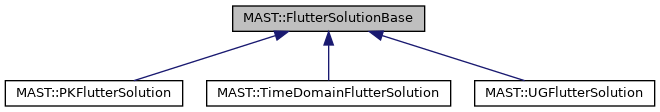

Inheritance diagram for MAST::FlutterSolutionBase:

Public Member Functions
	FlutterSolutionBase ()
virtual	~FlutterSolutionBase ()
	delete the flutter root objects More...
const MAST::FlutterRootBase &	get_root (const unsigned int i) const
MAST::FlutterRootBase &	get_root (const unsigned int i)
unsigned int	n_roots () const
	number of roots in this solution More...
virtual void	print (std::ostream &output)=0
	prints the data and modes from this solution More...
Real	ref_val () const
	the reduced frequency for this solution More...
virtual void	sort (const MAST::FlutterSolutionBase &sol)=0
	sort this root with respect to the given solution from a previous eigen solution. More...
void	swap_root (MAST::FlutterSolutionBase &sol, unsigned int root_num)

Protected Attributes
Real	_ref_val
	Reference value of the sweeping parameter for which this solution was obtained. More...
std::vector< MAST::FlutterRootBase * >	_roots

Constructor & Destructor Documentation

FlutterSolutionBase()

MAST::FlutterSolutionBase::FlutterSolutionBase ( )

inline

Definition at line 41 of file flutter_solution_base.h.

~FlutterSolutionBase()

MAST::FlutterSolutionBase::~FlutterSolutionBase ( )

virtual

delete the flutter root objects

Definition at line 26 of file flutter_solution_base.cpp.

Member Function Documentation

get_root() [1/2]

const MAST::FlutterRootBase& MAST::FlutterSolutionBase::get_root ( const unsigned int  i ) const

inline

Returns

the root

Definition at line 70 of file flutter_solution_base.h.

get_root() [2/2]

MAST::FlutterRootBase& MAST::FlutterSolutionBase::get_root ( const unsigned int  i )

inline

Returns

a non-const reference to the root

Definition at line 81 of file flutter_solution_base.h.

n_roots()

unsigned int MAST::FlutterSolutionBase::n_roots ( ) const

inline

number of roots in this solution

Definition at line 61 of file flutter_solution_base.h.

print()

virtual void MAST::FlutterSolutionBase::print ( std::ostream &  output )

pure virtual

prints the data and modes from this solution

Implemented in MAST::TimeDomainFlutterSolution, MAST::PKFlutterSolution, and MAST::UGFlutterSolution.

ref_val()

Real MAST::FlutterSolutionBase::ref_val ( ) const

inline

the reduced frequency for this solution

Definition at line 54 of file flutter_solution_base.h.

sort()

virtual void MAST::FlutterSolutionBase::sort ( const MAST::FlutterSolutionBase &  sol )

pure virtual

sort this root with respect to the given solution from a previous eigen solution.

This method relies on the modal participation. Flutter roots from previous and current solutions with highest dot product of modal participation vector are considered to be similar.

Implemented in MAST::TimeDomainFlutterSolution, MAST::PKFlutterSolution, and MAST::UGFlutterSolution.

swap_root()

void MAST::FlutterSolutionBase::swap_root	(	MAST::FlutterSolutionBase &	sol,
		unsigned int	root_num
	)

Definition at line 38 of file flutter_solution_base.cpp.

Member Data Documentation

_ref_val

Real MAST::FlutterSolutionBase::_ref_val

protected

Reference value of the sweeping parameter for which this solution was obtained.

For UG solver, this is k_red, and for time domain solver this could be velocity. PK solver will need additional reference values, provided in the inherited class.

Definition at line 119 of file flutter_solution_base.h.

_roots

std::vector<MAST::FlutterRootBase*> MAST::FlutterSolutionBase::_roots

protected

Definition at line 121 of file flutter_solution_base.h.

---

The documentation for this class was generated from the following files:

• /home/travis/build/MASTmultiphysics/mast-multiphysics/src/aeroelasticity/flutter_solution_base.h
• /home/travis/build/MASTmultiphysics/mast-multiphysics/src/aeroelasticity/flutter_solution_base.cpp
