Detailed Description

Definition at line 34 of file orthotropic_element_property_card_3D.h.

#include <orthotropic_element_property_card_3D.h>

Inheritance diagram for MAST::OrthotropicElementPropertyCard3D:

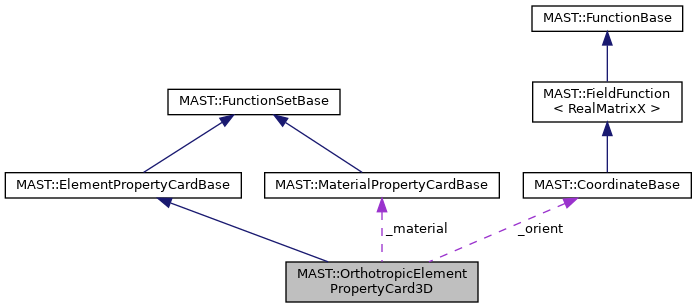

Collaboration diagram for MAST::OrthotropicElementPropertyCard3D:

[legend]

Public Member Functions
	OrthotropicElementPropertyCard3D ()

virtual	~OrthotropicElementPropertyCard3D ()
	virtual destructor More...

virtual MAST::BendingOperatorType	bending_model (const MAST::GeomElem &elem) const
	returns the bending model to be used for the element. More...

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	damping_matrix (const MAST::ElementBase &e) const

virtual bool	depends_on (const MAST::FunctionBase &f) const
	returns true if the property card depends on the function `f` More...

virtual unsigned int	dim () const
	dimension of the element for which this property is defined More...

virtual int	extra_quadrature_order (const MAST::GeomElem &elem) const
	returns the extra quadrature order (on top of the system) that this element should use. More...

const MAST::MaterialPropertyCardBase &	get_material () const
	returns a reference to the material More...

virtual bool	if_isotropic () const
	return true if the property is orthotropic More...

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	inertia_matrix (const MAST::ElementBase &e) const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	prestress_A_matrix (MAST::ElementBase &e) const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	prestress_B_matrix (MAST::ElementBase &e) const

virtual void	set_material (MAST::MaterialPropertyCardBase &mat)
	sets the material card More...

virtual void	set_orientation (const MAST::CoordinateBase &orient)
	sets the orientation coordinate system for this section. More...

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	stiffness_A_matrix (const MAST::ElementBase &e) const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	stiffness_B_matrix (const MAST::ElementBase &e) const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	stiffness_D_matrix (const MAST::ElementBase &e) const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	thermal_capacitance_matrix (const MAST::ElementBase &e) const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	thermal_conductance_matrix (const MAST::ElementBase &e) const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	thermal_expansion_A_matrix (const MAST::ElementBase &e) const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	thermal_expansion_B_matrix (const MAST::ElementBase &e) const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	transverse_shear_stiffness_matrix (const MAST::ElementBase &e) const

Public Member Functions inherited from MAST::ElementPropertyCardBase
	ElementPropertyCardBase ()

virtual	~ElementPropertyCardBase ()
	virtual destructor More...

virtual bool	get_warping_only () const

bool	if_diagonal_mass_matrix () const
	returns the type of strain to be used for this element More...

virtual bool	if_prestressed () const

virtual void	init ()
	Only used by 1D sections. More...

virtual const MAST::FieldFunction< Real > *	section (const MAST::ElementBase &e) const =0

virtual void	set_bending_model (MAST::BendingOperatorType b)
	sets the bending model to be used for the 1D element Added by DJN to increase section polymorphism More...

void	set_diagonal_mass_matrix (bool m)
	sets the mass matrix to be diagonal or consistent More...

virtual const MAST::MaterialPropertyCardBase &	set_material (MAST::MaterialPropertyCardBase &mat) const
	return the material property. More...

void	set_strain (MAST::StrainType strain)
	sets the type of strain to be used, which is LINEAR_STRAIN by default More...

const MAST::StrainType	strain_type () const
	returns the type of strain to be used for this element More...

virtual RealVectorX &	y_vector ()
	vector in the x-y plane of the element. More...

virtual const RealVectorX &	y_vector () const
	constant reference to vector in the x-y plane of the element. More...

Public Member Functions inherited from MAST::FunctionSetBase
	FunctionSetBase ()

virtual	~FunctionSetBase ()
	destructor deletes the function pointers More...

void	add (MAST::FunctionBase &f)
	adds the function to this card and returns a reference to it. More...

bool	contains (const std::string &nm) const
	checks if the card contains the specified property value More...

template<typename ValType >
const ValType &	get (const std::string &nm) const
	returns a constant reference to the specified function More...

template<typename ValType >
ValType &	get (const std::string &nm)
	returns a writable reference to the specified function More...

Protected Attributes
MAST::MaterialPropertyCardBase *	_material
	pointer to the material property card More...

const MAST::CoordinateBase *	_orient
	coordinate system to define orientation More...

Protected Attributes inherited from MAST::ElementPropertyCardBase
bool	_diagonal_mass
	flag to use a diagonal mass matrix. More...

MAST::StrainType	_strain_type
	type of nonlinear strain to be used for analysis More...

bool	_warping_only = false

Protected Attributes inherited from MAST::FunctionSetBase
std::map< std::string, MAST::FunctionBase * >	_properties
	map of the functions in this card More...

Constructor & Destructor Documentation

◆ OrthotropicElementPropertyCard3D()

MAST::OrthotropicElementPropertyCard3D::OrthotropicElementPropertyCard3D ( )

inline

Definition at line 38 of file orthotropic_element_property_card_3D.h.

◆ ~OrthotropicElementPropertyCard3D()

MAST::OrthotropicElementPropertyCard3D::~OrthotropicElementPropertyCard3D ( )

virtual

virtual destructor

Definition at line 534 of file orthotropic_element_property_card_3D.cpp.

Member Function Documentation

◆ bending_model()

virtual MAST::BendingOperatorType MAST::OrthotropicElementPropertyCard3D::bending_model ( const MAST::GeomElem & elem ) const

inlinevirtual

returns the bending model to be used for the element.

Should be reimplemented in the derived classes

Implements MAST::ElementPropertyCardBase.

Definition at line 96 of file orthotropic_element_property_card_3D.h.

◆ damping_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::damping_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 584 of file orthotropic_element_property_card_3D.cpp.

◆ depends_on()

bool MAST::OrthotropicElementPropertyCard3D::depends_on ( const MAST::FunctionBase & f ) const

virtual

returns true if the property card depends on the function f

Reimplemented from MAST::FunctionSetBase.

Definition at line 198 of file orthotropic_element_property_card_3D.cpp.

◆ dim()

virtual unsigned int MAST::OrthotropicElementPropertyCard3D::dim ( ) const

inlinevirtual

dimension of the element for which this property is defined

Implements MAST::ElementPropertyCardBase.

Definition at line 53 of file orthotropic_element_property_card_3D.h.

◆ extra_quadrature_order()

virtual int MAST::OrthotropicElementPropertyCard3D::extra_quadrature_order ( const MAST::GeomElem & elem ) const

inlinevirtual

returns the extra quadrature order (on top of the system) that this element should use.

By default this is zero, and can be changed by the derived classes

Implements MAST::ElementPropertyCardBase.

Definition at line 105 of file orthotropic_element_property_card_3D.h.

◆ get_material()

const MAST::MaterialPropertyCardBase& MAST::OrthotropicElementPropertyCard3D::get_material ( ) const

inlinevirtual

returns a reference to the material

Reimplemented from MAST::ElementPropertyCardBase.

Definition at line 78 of file orthotropic_element_property_card_3D.h.

◆ if_isotropic()

virtual bool MAST::OrthotropicElementPropertyCard3D::if_isotropic ( ) const

inlinevirtual

return true if the property is orthotropic

Implements MAST::ElementPropertyCardBase.

Definition at line 60 of file orthotropic_element_property_card_3D.h.

◆ inertia_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::inertia_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 594 of file orthotropic_element_property_card_3D.cpp.

◆ prestress_A_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::prestress_A_matrix ( MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 641 of file orthotropic_element_property_card_3D.cpp.

◆ prestress_B_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::prestress_B_matrix ( MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 651 of file orthotropic_element_property_card_3D.cpp.

◆ set_material()

virtual void MAST::OrthotropicElementPropertyCard3D::set_material ( MAST::MaterialPropertyCardBase & mat )

inlinevirtual

sets the material card

Definition at line 69 of file orthotropic_element_property_card_3D.h.

◆ set_orientation()

void MAST::OrthotropicElementPropertyCard3D::set_orientation ( const MAST::CoordinateBase & orient )

virtual

sets the orientation coordinate system for this section.

Definition at line 540 of file orthotropic_element_property_card_3D.cpp.

◆ stiffness_A_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::stiffness_A_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 548 of file orthotropic_element_property_card_3D.cpp.

◆ stiffness_B_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::stiffness_B_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 561 of file orthotropic_element_property_card_3D.cpp.

◆ stiffness_D_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::stiffness_D_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 573 of file orthotropic_element_property_card_3D.cpp.

◆ thermal_capacitance_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::thermal_capacitance_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 673 of file orthotropic_element_property_card_3D.cpp.

◆ thermal_conductance_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::thermal_conductance_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 661 of file orthotropic_element_property_card_3D.cpp.

◆ thermal_expansion_A_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::thermal_expansion_A_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 607 of file orthotropic_element_property_card_3D.cpp.

◆ thermal_expansion_B_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::thermal_expansion_B_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 621 of file orthotropic_element_property_card_3D.cpp.

◆ transverse_shear_stiffness_matrix()

std::unique_ptr< MAST::FieldFunction< RealMatrixX > > MAST::OrthotropicElementPropertyCard3D::transverse_shear_stiffness_matrix ( const MAST::ElementBase & e ) const

virtual

Implements MAST::ElementPropertyCardBase.

Definition at line 631 of file orthotropic_element_property_card_3D.cpp.

Member Data Documentation

◆ _material

MAST::MaterialPropertyCardBase* MAST::OrthotropicElementPropertyCard3D::_material

protected

pointer to the material property card

Definition at line 157 of file orthotropic_element_property_card_3D.h.

◆ _orient

const MAST::CoordinateBase* MAST::OrthotropicElementPropertyCard3D::_orient

protected

coordinate system to define orientation

Definition at line 162 of file orthotropic_element_property_card_3D.h.

The documentation for this class was generated from the following files:

/home/travis/build/MASTmultiphysics/mast-multiphysics/src/property_cards/orthotropic_element_property_card_3D.h
/home/travis/build/MASTmultiphysics/mast-multiphysics/src/property_cards/orthotropic_element_property_card_3D.cpp

Detailed Description

Public Member Functions

Protected Attributes

Constructor & Destructor Documentation

◆ OrthotropicElementPropertyCard3D()

◆ ~OrthotropicElementPropertyCard3D()

Member Function Documentation

◆ bending_model()

◆ damping_matrix()

◆ depends_on()

◆ dim()

◆ extra_quadrature_order()

◆ get_material()

◆ if_isotropic()

◆ inertia_matrix()

◆ prestress_A_matrix()

◆ prestress_B_matrix()

◆ set_material()

◆ set_orientation()

◆ stiffness_A_matrix()

◆ stiffness_B_matrix()

◆ stiffness_D_matrix()

◆ thermal_capacitance_matrix()

◆ thermal_conductance_matrix()

◆ thermal_expansion_A_matrix()

◆ thermal_expansion_B_matrix()

◆ transverse_shear_stiffness_matrix()

Member Data Documentation

◆ _material

◆ _orient
