Detailed Description

Definition at line 34 of file level_set_discipline.h.

#include <level_set_discipline.h>

Inheritance diagram for MAST::LevelSetDiscipline:

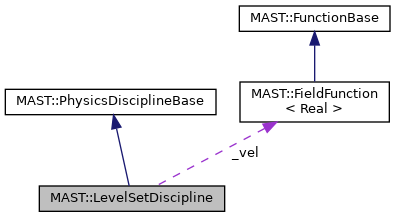

Collaboration diagram for MAST::LevelSetDiscipline:

Public Member Functions
	LevelSetDiscipline (libMesh::EquationSystems &eq_sys)

virtual	~LevelSetDiscipline ()
	virtual destructor More...

const MAST::FieldFunction< Real > &	get_velocity_function () const

bool	has_velocity_function () const

bool	if_level_set_propagation () const

void	set_level_set_propagation_mode (bool f)
	If `true`, then the level set will be propagated using the velocity specified by the velocity object in the constructor. More...

void	set_velocity_function (const MAST::FieldFunction< Real > &vel)
	sets the level set function normal velocity field More...

Public Member Functions inherited from MAST::PhysicsDisciplineBase
	PhysicsDisciplineBase (libMesh::EquationSystems &eq_sys)

virtual	~PhysicsDisciplineBase ()
	virtual destructor More...

void	add_dirichlet_bc (libMesh::boundary_id_type bid, MAST::DirichletBoundaryCondition &load)
	adds the specified Dirichlet boundary condition for the boundary with tag `b_id` More...

void	add_point_load (MAST::PointLoadCondition &load)
	adds the specified point load More...

void	add_side_load (libMesh::boundary_id_type bid, MAST::BoundaryConditionBase &load)
	adds the specified side loads for the boudnary with tag `b_id` More...

void	add_volume_load (libMesh::subdomain_id_type bid, MAST::BoundaryConditionBase &load)
	adds the specified volume loads for the elements with subdomain tag `s_id` More...

void	clear_loads ()
	clear the loads and pointer to static solution system for this structural model More...

void	clear_system_dirichlet_bc (MAST::NonlinearSystem &sys) const
	clears the system dirichlet boundary conditions More...

void	clear_volume_load (libMesh::subdomain_id_type sid, MAST::BoundaryConditionBase &load)
	clear the specified volume load from the applied loads More...

void	constrain_subdomain_dofs_for_var (const libMesh::subdomain_id_type sid, const unsigned int var)
	constrain dofs on a subdomain to zero More...

libMesh::EquationSystems &	get_equation_systems ()
	returns a reference to the libMesh::System object More...

const MAST::ElementPropertyCardBase &	get_property_card (const libMesh::Elem &elem) const
	get property card for the specified element More...

const MAST::ElementPropertyCardBase &	get_property_card (const MAST::GeomElem &elem) const
	get property card for the specified element More...

const MAST::ElementPropertyCardBase &	get_property_card (const unsigned int sid) const
	get property card for the specified subdomain id `i` More...

void	get_system_dirichlet_bc_dofs (libMesh::System &sys, std::set< unsigned int > &dof_ids) const
	Prepares a list of the constrained dofs for system `sys` and returns in `dof_ids`. More...

void	init_system_dirichlet_bc (MAST::NonlinearSystem &sys) const
	initializes the system for dirichlet boundary conditions More...

const MAST::PointLoadSetType &	point_loads () const

MAST::PointLoadSetType &	point_loads ()

void	remove_side_load (libMesh::boundary_id_type bid, MAST::BoundaryConditionBase &load)
	remove the specified side loads for the boudnary with tag `b_id` More...

void	remove_volume_load (libMesh::subdomain_id_type bid, MAST::BoundaryConditionBase &load)
	remove the specified volume loads for the elements with subdomain tag `s_id` More...

void	set_property_for_subdomain (const libMesh::subdomain_id_type sid, const MAST::ElementPropertyCardBase &prop)
	sets the same property for all elements in the specified subdomain More...

const MAST::SideBCMapType &	side_loads () const

MAST::SideBCMapType &	side_loads ()

const MAST::VolumeBCMapType &	volume_loads () const

MAST::VolumeBCMapType &	volume_loads ()

Protected Attributes
bool	_if_level_set_propagation

const MAST::FieldFunction< Real > *	_vel

Protected Attributes inherited from MAST::PhysicsDisciplineBase
MAST::DirichletBCMapType	_dirichlet_bc_map
	Dirichlet boundary condition map of boundary id and load. More...

MAST::PropertyCardMapType	_element_property
	map of element property cards for each element More...

libMesh::EquationSystems &	_eq_systems
	libMesh::System for which analysis is to be performed More...

MAST::PointLoadSetType	_point_loads
	point loads More...

MAST::SideBCMapType	_side_bc_map
	side boundary condition map of boundary id and load More...

std::map< libMesh::subdomain_id_type, std::vector< unsigned int > >	_subdomain_var_constraint
	variables constrained on subdomain More...

MAST::VolumeBCMapType	_vol_bc_map
	volume boundary condition map of boundary id and load More...

Constructor & Destructor Documentation

◆ LevelSetDiscipline()

MAST::LevelSetDiscipline::LevelSetDiscipline ( libMesh::EquationSystems & eq_sys )

Definition at line 28 of file level_set_discipline.cpp.

◆ ~LevelSetDiscipline()

MAST::LevelSetDiscipline::~LevelSetDiscipline ( )

virtual

virtual destructor

Definition at line 36 of file level_set_discipline.cpp.

Member Function Documentation

◆ get_velocity_function()

const MAST::FieldFunction<Real>& MAST::LevelSetDiscipline::get_velocity_function ( ) const

inline

Returns: a reference to the velocity function for this level set

Definition at line 74 of file level_set_discipline.h.

◆ has_velocity_function()

bool MAST::LevelSetDiscipline::has_velocity_function ( ) const

inline

Returns: true if the velocity function has been set for this discipline

Definition at line 65 of file level_set_discipline.h.

◆ if_level_set_propagation()

bool MAST::LevelSetDiscipline::if_level_set_propagation ( ) const

inline

Definition at line 90 of file level_set_discipline.h.

◆ set_level_set_propagation_mode()

void MAST::LevelSetDiscipline::set_level_set_propagation_mode ( bool f )

inline

If true, then the level set will be propagated using the velocity specified by the velocity object in the constructor.

Otherwise, the level set will be reinitialized for $|\nabla(\phi)| = 1$ .

Definition at line 85 of file level_set_discipline.h.

◆ set_velocity_function()

void MAST::LevelSetDiscipline::set_velocity_function ( const MAST::FieldFunction< Real > & vel )

inline

sets the level set function normal velocity field

Definition at line 54 of file level_set_discipline.h.

Member Data Documentation

◆ _if_level_set_propagation

bool MAST::LevelSetDiscipline::_if_level_set_propagation

protected

Definition at line 100 of file level_set_discipline.h.

◆ _vel

const MAST::FieldFunction<Real>* MAST::LevelSetDiscipline::_vel

protected

Definition at line 98 of file level_set_discipline.h.

The documentation for this class was generated from the following files:

/home/travis/build/MASTmultiphysics/mast-multiphysics/src/level_set/level_set_discipline.h
/home/travis/build/MASTmultiphysics/mast-multiphysics/src/level_set/level_set_discipline.cpp
