Detailed Description

Definition at line 31 of file element_property_card_1D.h.

#include <element_property_card_1D.h>

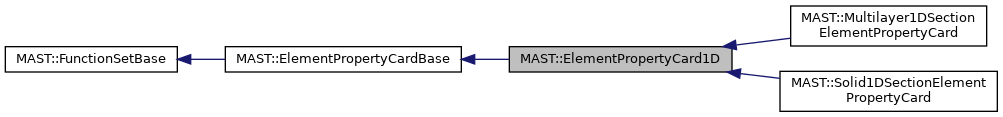

Inheritance diagram for MAST::ElementPropertyCard1D:

[legend]

Collaboration diagram for MAST::ElementPropertyCard1D:

Public Member Functions
	ElementPropertyCard1D ()

virtual	~ElementPropertyCard1D ()
	virtual destructor More...

virtual const MAST::FieldFunction< Real > &	A () const =0

virtual MAST::FieldFunction< Real > &	A ()=0

virtual const MAST::FieldFunction< Real > &	Ay () const =0

virtual MAST::FieldFunction< Real > &	Ay ()=0

virtual const MAST::FieldFunction< Real > &	Az () const =0

virtual MAST::FieldFunction< Real > &	Az ()=0

virtual MAST::BendingOperatorType	bending_model (const MAST::GeomElem &elem) const
	returns the bending model to be used for the 2D element. More...

virtual unsigned int	dim () const
	dimension of the element for which this property is defined More...

virtual int	extra_quadrature_order (const MAST::GeomElem &elem) const
	returns the extra quadrature order (on top of the system) that this element should use. More...

virtual const MAST::FieldFunction< RealMatrixX > &	I () const =0

virtual MAST::FieldFunction< RealMatrixX > &	I ()=0

virtual const MAST::FieldFunction< Real > &	Ip () const =0

virtual MAST::FieldFunction< Real > &	Ip ()=0

virtual const MAST::FieldFunction< Real > &	J () const =0

virtual MAST::FieldFunction< Real > &	J ()=0

void	set_bending_model (MAST::BendingOperatorType b)
	returns the bending model to be used for the 2D element More...

RealVectorX &	y_vector ()
	returns value of the property `val`. More...

const RealVectorX &	y_vector () const
	constant reference to vector in the x-y plane of the element. More...

Public Member Functions inherited from MAST::ElementPropertyCardBase
	ElementPropertyCardBase ()

virtual	~ElementPropertyCardBase ()
	virtual destructor More...

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	damping_matrix (const MAST::ElementBase &e) const =0

virtual const MAST::MaterialPropertyCardBase &	get_material () const
	return the material property. More...

virtual bool	get_warping_only () const

bool	if_diagonal_mass_matrix () const
	returns the type of strain to be used for this element More...

virtual bool	if_isotropic () const =0
	return true if the property is isotropic More...

virtual bool	if_prestressed () const

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	inertia_matrix (const MAST::ElementBase &e) const =0

virtual void	init ()
	Only used by 1D sections. More...

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	prestress_A_matrix (MAST::ElementBase &e) const =0

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	prestress_B_matrix (MAST::ElementBase &e) const =0

virtual const MAST::FieldFunction< Real > *	section (const MAST::ElementBase &e) const =0

void	set_diagonal_mass_matrix (bool m)
	sets the mass matrix to be diagonal or consistent More...

virtual const MAST::MaterialPropertyCardBase &	set_material (MAST::MaterialPropertyCardBase &mat) const
	return the material property. More...

void	set_strain (MAST::StrainType strain)
	sets the type of strain to be used, which is LINEAR_STRAIN by default More...

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	stiffness_A_matrix (const MAST::ElementBase &e) const =0

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	stiffness_B_matrix (const MAST::ElementBase &e) const =0

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	stiffness_D_matrix (const MAST::ElementBase &e) const =0

const MAST::StrainType	strain_type () const
	returns the type of strain to be used for this element More...

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	thermal_capacitance_matrix (const MAST::ElementBase &e) const =0

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	thermal_conductance_matrix (const MAST::ElementBase &e) const =0

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	thermal_expansion_A_matrix (const MAST::ElementBase &e) const =0

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	thermal_expansion_B_matrix (const MAST::ElementBase &e) const =0

virtual std::unique_ptr< MAST::FieldFunction< RealMatrixX > >	transverse_shear_stiffness_matrix (const MAST::ElementBase &e) const =0

Public Member Functions inherited from MAST::FunctionSetBase
	FunctionSetBase ()

virtual	~FunctionSetBase ()
	destructor deletes the function pointers More...

void	add (MAST::FunctionBase &f)
	adds the function to this card and returns a reference to it. More...

bool	contains (const std::string &nm) const
	checks if the card contains the specified property value More...

virtual bool	depends_on (const MAST::FunctionBase &f) const
	returns true if the property card depends on the function `f` More...

template<typename ValType >
const ValType &	get (const std::string &nm) const
	returns a constant reference to the specified function More...

template<typename ValType >
ValType &	get (const std::string &nm)
	returns a writable reference to the specified function More...

Protected Attributes
MAST::BendingOperatorType	_bending_model
	material property card. More...

RealVectorX	_local_y
	vector in the x-y plane. More...

Protected Attributes inherited from MAST::ElementPropertyCardBase
bool	_diagonal_mass
	flag to use a diagonal mass matrix. More...

MAST::StrainType	_strain_type
	type of nonlinear strain to be used for analysis More...

bool	_warping_only = false

Protected Attributes inherited from MAST::FunctionSetBase
std::map< std::string, MAST::FunctionBase * >	_properties
	map of the functions in this card More...

Constructor & Destructor Documentation

◆ ElementPropertyCard1D()

MAST::ElementPropertyCard1D::ElementPropertyCard1D ( )

inline

Definition at line 34 of file element_property_card_1D.h.

◆ ~ElementPropertyCard1D()

virtual MAST::ElementPropertyCard1D::~ElementPropertyCard1D ( )

inlinevirtual

virtual destructor

Definition at line 42 of file element_property_card_1D.h.

Member Function Documentation

◆ A() [1/2]

virtual const MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::A ( ) const

pure virtual

Returns: a constant reference to the section area function

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ A() [2/2]

virtual MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::A ( )

pure virtual

Returns: reference to the section area function

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ Ay() [1/2]

virtual const MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::Ay ( ) const

pure virtual

Returns: constant reference to the function that calculates section area moment about y-axis

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ Ay() [2/2]

virtual MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::Ay ( )

pure virtual

Returns: reference to the function that calculates section area moment about y-axis

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ Az() [1/2]

virtual const MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::Az ( ) const

pure virtual

Returns: constant reference to the function that calculates section area moment about z-axis

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ Az() [2/2]

virtual MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::Az ( )

pure virtual

Returns: reference to the function that calculates section area moment about z-axis

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ bending_model()

MAST::BendingOperatorType MAST::ElementPropertyCard1D::bending_model ( const MAST::GeomElem & elem ) const

virtual

returns the bending model to be used for the 2D element.

Implements MAST::ElementPropertyCardBase.

Definition at line 25 of file element_property_card_1D.cpp.

◆ dim()

virtual unsigned int MAST::ElementPropertyCard1D::dim ( ) const

inlinevirtual

dimension of the element for which this property is defined

Implements MAST::ElementPropertyCardBase.

Definition at line 48 of file element_property_card_1D.h.

◆ extra_quadrature_order()

virtual int MAST::ElementPropertyCard1D::extra_quadrature_order ( const MAST::GeomElem & elem ) const

inlinevirtual

returns the extra quadrature order (on top of the system) that this element should use.

This is elevated by two orders for a DKT element

Implements MAST::ElementPropertyCardBase.

Definition at line 74 of file element_property_card_1D.h.

◆ I() [1/2]

virtual const MAST::FieldFunction<RealMatrixX>& MAST::ElementPropertyCard1D::I ( ) const

pure virtual

Returns: constant reference to the function that calculates the section area moment of inertia

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ I() [2/2]

virtual MAST::FieldFunction<RealMatrixX>& MAST::ElementPropertyCard1D::I ( )

pure virtual

Returns: reference to the function that calculates the section area moment of inertia

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ Ip() [1/2]

virtual const MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::Ip ( ) const

pure virtual

Returns: reference to the section polar moment function

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ Ip() [2/2]

virtual MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::Ip ( )

pure virtual

Returns: reference to the section polar moment function

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ J() [1/2]

virtual const MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::J ( ) const

pure virtual

Returns: constant reference to the function that calculates the section torsional constant

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ J() [2/2]

virtual MAST::FieldFunction<Real>& MAST::ElementPropertyCard1D::J ( )

pure virtual

Returns: reference to the function that calculates the section torsional constant

Implemented in MAST::Solid1DSectionElementPropertyCard.

◆ set_bending_model()

void MAST::ElementPropertyCard1D::set_bending_model ( MAST::BendingOperatorType b )

inlinevirtual

returns the bending model to be used for the 2D element

Reimplemented from MAST::ElementPropertyCardBase.

Definition at line 56 of file element_property_card_1D.h.

◆ y_vector() [1/2]

RealVectorX& MAST::ElementPropertyCard1D::y_vector ( )

inlinevirtual

returns value of the property val.

The string values for val are IYY, IZZ, IYZ

vector in the x-y plane of the element. This should not be the same as the element x-axis.

Reimplemented from MAST::ElementPropertyCardBase.

Definition at line 92 of file element_property_card_1D.h.

◆ y_vector() [2/2]

const RealVectorX& MAST::ElementPropertyCard1D::y_vector ( ) const

inlinevirtual

constant reference to vector in the x-y plane of the element.

This should not be the same as the element x-axis.

Reimplemented from MAST::ElementPropertyCardBase.

Definition at line 101 of file element_property_card_1D.h.

Member Data Documentation

◆ _bending_model

MAST::BendingOperatorType MAST::ElementPropertyCard1D::_bending_model

protected

material property card.

By default this chooses DKT for 3 noded triangles and Mindling for all other elements

Definition at line 183 of file element_property_card_1D.h.

◆ _local_y

RealVectorX MAST::ElementPropertyCard1D::_local_y

protected

vector in the x-y plane.

Definition at line 188 of file element_property_card_1D.h.

The documentation for this class was generated from the following files:

/home/travis/build/MASTmultiphysics/mast-multiphysics/src/property_cards/element_property_card_1D.h
/home/travis/build/MASTmultiphysics/mast-multiphysics/src/property_cards/element_property_card_1D.cpp
