Detailed Description

Assembles the system of equations for an eigenproblem of type ${\bf A} {\bf x} = \lambda {\bf B} {\bf x}$ .

If the

Definition at line 40 of file eigenproblem_assembly.h.

#include <eigenproblem_assembly.h>

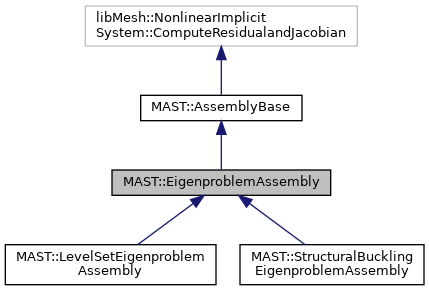

Inheritance diagram for MAST::EigenproblemAssembly:

[legend]

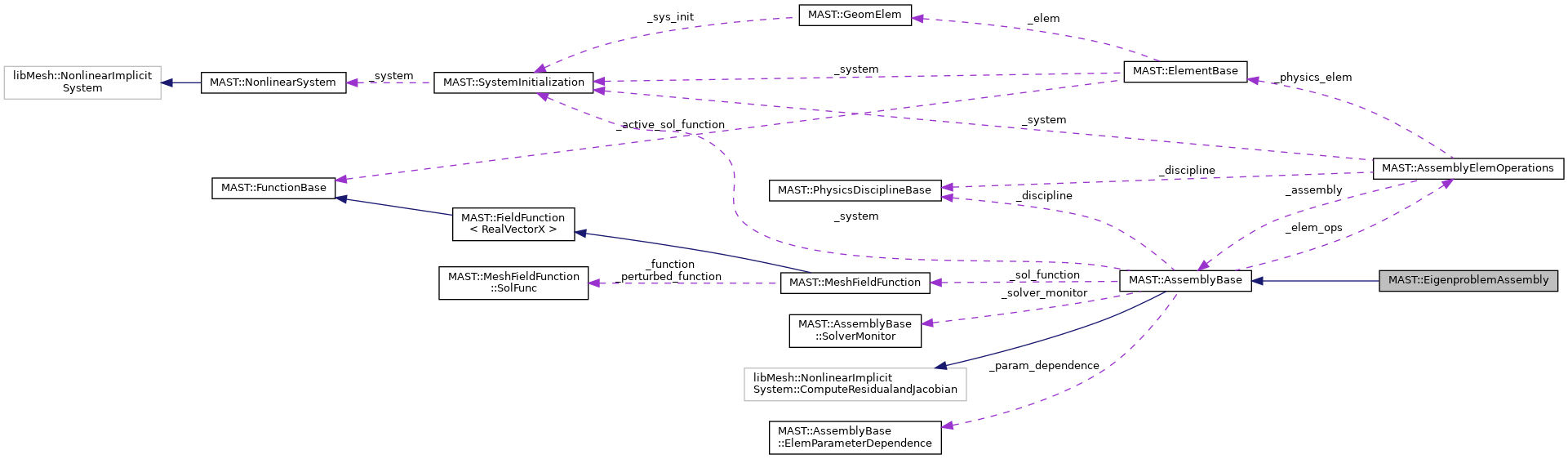

Collaboration diagram for MAST::EigenproblemAssembly:

[legend]

Public Member Functions
	EigenproblemAssembly ()
	constructor associates the eigen system with this assembly object More...

virtual	~EigenproblemAssembly ()
	destructor resets the association with the eigen system from this assembly object More...

libMesh::SparseMatrix< Real > &	A_matrix ()

libMesh::SparseMatrix< Real > &	B_matrix ()

const libMesh::NumericVector< Real > &	base_sol (bool if_sens=false) const

libMesh::NumericVector< Real > &	base_sol (bool if_sens=false)

void	clear_base_solution (bool if_sens=false)
	Clears the pointer to the solution. More...

virtual void	eigenproblem_assemble (libMesh::SparseMatrix< Real > A, libMesh::SparseMatrix< Real > B)
	assembles the matrices for eigenproblem depending on the analysis type More...

virtual bool	eigenproblem_sensitivity_assemble (const MAST::FunctionBase &f, libMesh::SparseMatrix< Real > sensitivity_A, libMesh::SparseMatrix< Real > sensitivity_B)
	Assembly function. More...

bool	if_linearized_about_nonzero_solution () const

void	set_base_solution (const libMesh::NumericVector< Real > &sol, bool if_sens=false)
	if the eigenproblem is defined about a non-zero base solution, then this method provides the object with the base solution. More...

Public Member Functions inherited from MAST::AssemblyBase
	AssemblyBase ()
	constructor takes a reference to the discipline that provides the boundary conditions, volume loads, properties, etc. More...

virtual	~AssemblyBase ()
	virtual destructor More...

void	attach_elem_parameter_dependence_object (MAST::AssemblyBase::ElemParameterDependence &dep)
	This object, if provided by user, will be used to reduce unnecessary computations in sensitivity analysis assembly operations. More...

void	attach_solution_function (MAST::MeshFieldFunction &f)
	tells the assembly object that this function is will need to be initialized before each residual evaluation More...

std::unique_ptr< libMesh::NumericVector< Real > >	build_localized_vector (const libMesh::System &sys, const libMesh::NumericVector< Real > &global) const
	localizes the parallel vector so that the local copy stores all values necessary for calculation of the element quantities More...

virtual void	calculate_output (const libMesh::NumericVector< Real > &X, bool if_localize_sol, MAST::OutputAssemblyElemOperations &output)
	calculates the value of quantity . More...

virtual Real	calculate_output_adjoint_sensitivity (const libMesh::NumericVector< Real > &X, bool if_localize_sol, const libMesh::NumericVector< Real > &adj_sol, const MAST::FunctionBase &p, MAST::AssemblyElemOperations &elem_ops, MAST::OutputAssemblyElemOperations &output, const bool include_partial_sens=true)
	Evaluates the total sensitivity of `output` wrt `p` using the adjoint solution provided in `adj_sol` for a linearization about solution `X`. More...

virtual void	calculate_output_adjoint_sensitivity_multiple_parameters_no_direct (const libMesh::NumericVector< Real > &X, bool if_localize_sol, const libMesh::NumericVector< Real > &adj_sol, const std::vector< const MAST::FunctionBase *> &p_vec, MAST::AssemblyElemOperations &elem_ops, MAST::OutputAssemblyElemOperations &output, std::vector< Real > &sens)
	Evaluates the dot product between `adj_sol` and sensitivity of residual about `X` for multiple parameter_vectors `p_vec` and returns the results in `sens`. More...

virtual void	calculate_output_derivative (const libMesh::NumericVector< Real > &X, bool if_localize_sol, MAST::OutputAssemblyElemOperations &output, libMesh::NumericVector< Real > &dq_dX)
	calculates $\frac{\partial q(X, p)}{\partial X}$ More...

virtual void	calculate_output_direct_sensitivity (const libMesh::NumericVector< Real > &X, bool if_localize_sol, const libMesh::NumericVector< Real > *dXdp, bool if_localize_sol_sens, const MAST::FunctionBase &p, MAST::OutputAssemblyElemOperations &output)
	evaluates the sensitivity of the outputs in the attached discipline with respect to the parametrs in `params`. More...

virtual void	clear_discipline_and_system ()
	clears association with a system to this discipline More...

virtual void	clear_elem_operation_object ()
	clears the association of `this` object with the assembly element operation object. More...

void	clear_elem_parameter_dependence_object ()

void	clear_solver_monitor ()
	clears the monitor object More...

void	detach_solution_function ()
	removes the attachment of the solution function More...

const MAST::PhysicsDisciplineBase &	discipline () const

MAST::PhysicsDisciplineBase &	discipline ()

MAST::AssemblyElemOperations &	get_elem_ops ()

MAST::AssemblyBase::SolverMonitor *	get_solver_monitor ()

virtual void	residual_and_jacobian (const libMesh::NumericVector< Real > &X, libMesh::NumericVector< Real > R, libMesh::SparseMatrix< Real > J, libMesh::NonlinearImplicitSystem &S)
	function that assembles the matrices and vectors quantities for nonlinear solution More...

virtual bool	sensitivity_assemble (const libMesh::NumericVector< Real > &X, bool if_localize_sol, const MAST::FunctionBase &f, libMesh::NumericVector< Real > &sensitivity_rhs, bool close_vector=true)
	Assembly function. More...

virtual void	set_discipline_and_system (MAST::PhysicsDisciplineBase &discipline, MAST::SystemInitialization &system)
	attaches a system to this discipline More...

virtual void	set_elem_operation_object (MAST::AssemblyElemOperations &elem_ops)
	attaches a element operation to this object, and associated `this` with the element operation object. More...

void	set_solver_monitor (MAST::AssemblyBase::SolverMonitor &monitor)
	attaches the solver monitor, which is a user provided routine that is called each time More...

const MAST::NonlinearSystem &	system () const

MAST::NonlinearSystem &	system ()

MAST::SystemInitialization &	system_init ()

Protected Attributes
const libMesh::NumericVector< Real > *	_base_sol
	base solution about which this eigenproblem is defined. More...

const libMesh::NumericVector< Real > *	_base_sol_sensitivity
	sensitivity of base solution may be needed for sensitivity analysis. More...

Protected Attributes inherited from MAST::AssemblyBase
MAST::PhysicsDisciplineBase *	_discipline
	PhysicsDisciplineBase object for which this class is assembling. More...

MAST::AssemblyElemOperations *	_elem_ops
	provides assembly elem operations for use by this class More...

MAST::AssemblyBase::ElemParameterDependence *	_param_dependence
	If provided by user, this object is used by sensitiivty analysis to check for whether or the current design parameter influences an element. More...

MAST::MeshFieldFunction *	_sol_function
	system solution that will be initialized before each solution More...

MAST::AssemblyBase::SolverMonitor *	_solver_monitor
	User provided solver monitor is attached to the linear nonlinear solvers, if provided. More...

MAST::SystemInitialization *	_system
	System for which this assembly is performed. More...

Additional Inherited Members
Public Attributes inherited from MAST::AssemblyBase
bool	close_matrix
	flag to control the closing fo the Jacobian after assembly More...

std::set< unsigned int >	diagonal_elem_subdomain_id
	subdomain ids for which residuakl and Jacobian contributions will not be computed. More...

Constructor & Destructor Documentation

◆ EigenproblemAssembly()

MAST::EigenproblemAssembly::EigenproblemAssembly ( )

constructor associates the eigen system with this assembly object

Definition at line 38 of file eigenproblem_assembly.cpp.

◆ ~EigenproblemAssembly()

MAST::EigenproblemAssembly::~EigenproblemAssembly ( )

virtual

destructor resets the association with the eigen system from this assembly object

Definition at line 47 of file eigenproblem_assembly.cpp.

Member Function Documentation

◆ A_matrix()

libMesh::SparseMatrix<Real>& MAST::EigenproblemAssembly::A_matrix ( )

Returns: a reference to the A matrix of the EigenSystem

◆ B_matrix()

libMesh::SparseMatrix<Real>& MAST::EigenproblemAssembly::B_matrix ( )

Returns: a reference to the B matrix of the EigenSystem. Note that this matrix exists only for the Generalized Eigen problem.

◆ base_sol() [1/2]

const libMesh::NumericVector<Real>& MAST::EigenproblemAssembly::base_sol ( bool if_sens = false ) const

Returns: a const reference to the base solution (or its sensitivity when if_sens is true) about which the Eigen problem was linearized.

◆ base_sol() [2/2]

libMesh::NumericVector<Real>& MAST::EigenproblemAssembly::base_sol ( bool if_sens = false )

Returns: a non-const reference to the base solution (or its sensitivity when if_sens is true) about which the Eigen problem was linearized.

◆ clear_base_solution()

void MAST::EigenproblemAssembly::clear_base_solution ( bool if_sens = false )

Clears the pointer to the solution.

The flag if_sens tells the method to clear the pointer the solution sensitivity vector.

Definition at line 77 of file eigenproblem_assembly.cpp.

◆ eigenproblem_assemble()

void MAST::EigenproblemAssembly::eigenproblem_assemble	(	libMesh::SparseMatrix< Real > *	A,
		libMesh::SparseMatrix< Real > *	B
	)

virtual

assembles the matrices for eigenproblem depending on the analysis type

Reimplemented in MAST::LevelSetEigenproblemAssembly, and MAST::StructuralBucklingEigenproblemAssembly.

Definition at line 90 of file eigenproblem_assembly.cpp.

◆ eigenproblem_sensitivity_assemble()

bool MAST::EigenproblemAssembly::eigenproblem_sensitivity_assemble	(	const MAST::FunctionBase &	f,
		libMesh::SparseMatrix< Real > *	sensitivity_A,
		libMesh::SparseMatrix< Real > *	sensitivity_B
	)

virtual

Assembly function.

This function will be called to assemble the sensitivity of eigenproblem matrices. The method provides dA/dp and dB/dp for f parameter.

If the routine is not able to provide sensitivity for this parameter, then it should return false, and the system will attempt to use finite differencing.

Reimplemented in MAST::LevelSetEigenproblemAssembly.

Definition at line 185 of file eigenproblem_assembly.cpp.

◆ if_linearized_about_nonzero_solution()

bool MAST::EigenproblemAssembly::if_linearized_about_nonzero_solution ( ) const

Returns: true if a nonzero base solution is used to linearize the Eigen problem, false otherwise

◆ set_base_solution()

void MAST::EigenproblemAssembly::set_base_solution	(	const libMesh::NumericVector< Real > &	sol,
		bool	if_sens = `false`
	)

if the eigenproblem is defined about a non-zero base solution, then this method provides the object with the base solution.

The flag if_sens tells the method if sol is the sensitivity of the base solution for the current parameter being solved for

Definition at line 54 of file eigenproblem_assembly.cpp.

Member Data Documentation

◆ _base_sol

const libMesh::NumericVector<Real>* MAST::EigenproblemAssembly::_base_sol

protected

base solution about which this eigenproblem is defined.

This vector stores the localized values necessary to perform element calculations.

Definition at line 143 of file eigenproblem_assembly.h.

◆ _base_sol_sensitivity

const libMesh::NumericVector<Real>* MAST::EigenproblemAssembly::_base_sol_sensitivity

protected

sensitivity of base solution may be needed for sensitivity analysis.

This vector stores the localized values necessary to perform element calculations.

Definition at line 150 of file eigenproblem_assembly.h.

The documentation for this class was generated from the following files:

/home/travis/build/MASTmultiphysics/mast-multiphysics/src/base/eigenproblem_assembly.h
/home/travis/build/MASTmultiphysics/mast-multiphysics/src/base/eigenproblem_assembly.cpp
