MAST::ArclengthContinuationSolver Class Reference

Detailed Description

constraint equation is defined along the path $ s $ as

\[ g(X, p, ds) = (x-x0) dx/ds + (p-p0) dp/ds - ds = 0, \]

where, $ X $ is the solution, $ p $ is the load parameter, and $ ds $ is the chord length.

Definition at line 35 of file arclength_continuation_solver.h.

#include <arclength_continuation_solver.h>

Inheritance diagram for MAST::ArclengthContinuationSolver:
Inheritance graph
[legend]

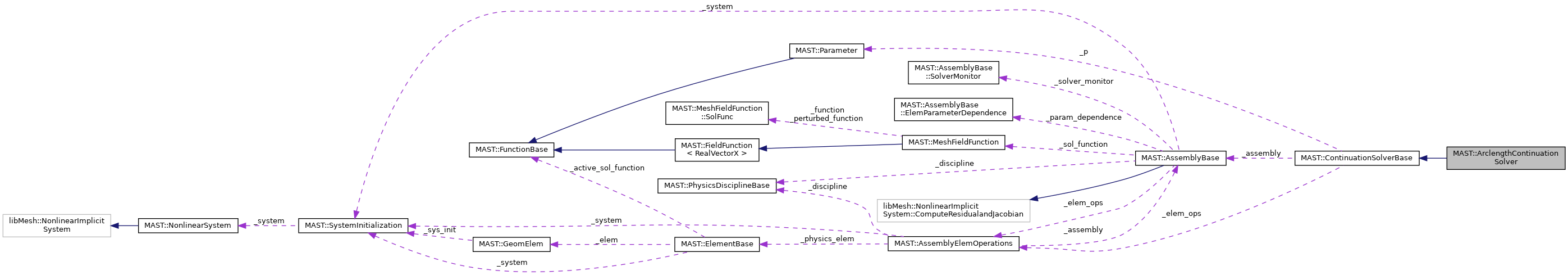

Collaboration diagram for MAST::ArclengthContinuationSolver:
Collaboration graph
[legend]

Public Member Functions

 ArclengthContinuationSolver ()

virtual ~ArclengthContinuationSolver ()

virtual void initialize (Real dp)
 sets the arc length using a nonlinear solution using a step dp. More...

- Public Member Functions inherited from MAST::ContinuationSolverBase
 ContinuationSolverBase ()

virtual ~ContinuationSolverBase ()

void clear_assembly_and_load_parameters ()
 clears the assembly object from this solver More...

void set_assembly_and_load_parameter (MAST::AssemblyElemOperations &elem_ops, MAST::AssemblyBase &assembly, MAST::Parameter &p)
 sets the assembly object for this solver More...

virtual void solve ()
 solves for the next load step More...


Protected Member Functions

virtual void _dXdp (const libMesh::NumericVector< Real > &X, const MAST::Parameter &p, libMesh::NumericVector< Real > &dfdp, libMesh::NumericVector< Real > &dXdp)

virtual Real _g (const libMesh::NumericVector< Real > &X, const MAST::Parameter &p)


\[ g(X, p, ds) = X_{scale} * (X-X0) (dX/ds)_{scaled} + p_{scale} * (p-p0) (dp/ds)_{scaled} - ds_{scaled} = 0 \]

More...

void _g (const libMesh::NumericVector< Real > &X, const MAST::Parameter &p, libMesh::NumericVector< Real > &dfdp, libMesh::NumericVector< Real > &dXdp, Real &g, Real &dgdp, libMesh::NumericVector< Real > *dgdX)


\begin{eqnarray*} g(X, p, ds) & = & X_{scale} * (X-X0) (dX/ds)_{scaled} + p_{scale} * (p-p0) (dp/ds)_{scaled} - ds_{scaled} = 0 \\ dg/dp & = & p_{scale} * (dp/ds)_{scaled} \\ dg/dX & = & X_{scale} * (dX/ds)_{scaled} \end{eqnarray*}

More...

virtual void _reset_iterations ()
 method resets any data if a soltion step is restarted. More...

virtual void _save_iteration_data ()
 method saves any data for possible resuse if the solution step is restarted. More...

virtual void _solve_NR_iterate (libMesh::NumericVector< Real > &X, MAST::Parameter &p)

- Protected Member Functions inherited from MAST::ContinuationSolverBase
Real _res_norm (const libMesh::NumericVector< Real > &X, const MAST::Parameter &p)

void _solve (const libMesh::NumericVector< Real > &X, const MAST::Parameter &p, libMesh::NumericVector< Real > &f, bool update_f, libMesh::NumericVector< Real > &dfdp, bool update_dfdp, const libMesh::NumericVector< Real > &dgdX, const Real dgdp, const Real g, libMesh::NumericVector< Real > &dX, Real &dp)
 solves for the linear system of equation as a monolithic system

\[ \left[ \begin{array}{cc} df/dx & df/dp \\ dg/dx & dg/dp \end{array}\right] \left\{ \begin{array}{c} dx \\ dp \end{array} \right\} = - \left\{ \begin{array}{c} f \\ g \end{array} \right\} \]

dX and dp are returned from the solution More...


void _solve_schur_factorization (const libMesh::NumericVector< Real > &X, const MAST::Parameter &p, libMesh::SparseMatrix< Real > &jac, bool update_jac, libMesh::NumericVector< Real > &f, bool update_f, libMesh::NumericVector< Real > &dfdp, bool update_dfdp, libMesh::NumericVector< Real > &dXdp, bool update_dXdp, const libMesh::NumericVector< Real > &dgdX, const Real dgdp, const Real g, libMesh::NumericVector< Real > &dX, Real &dp)
 solves for the linear system of equation using Schur factorization. More...


Protected Attributes

Real _dpds_sign

- Protected Attributes inherited from MAST::ContinuationSolverBase
MAST::AssemblyBase * _assembly

MAST::AssemblyElemOperations * _elem_ops

bool _initialized

MAST::Parameter * _p

Real _p0

Real _p_scale

std::unique_ptr< libMesh::NumericVector< Real > > _X0

Real _X_scale


Additional Inherited Members

- Public Attributes inherited from MAST::ContinuationSolverBase
Real abs_tol
 Absolute tolerance for the solver. More...

Real arc_length
 arc length that the solver is required to satisfy for the update. More...

unsigned int max_it
 Maximum number of Newton-Raphson iterations for the solver. More...

Real max_step
 maximum step size allowed with adaptivity More...

Real min_step
 minimum step size allowed with adaptivity More...

Real rel_tol
 Relative tolerance for the solver. More...

bool schur_factorization
 flag to use Schur-factorizaiton (default) or monolithic solver More...

unsigned int step_desired_iters
 desired N-R iterations per load-step. More...

Real step_size_change_exponent
 exponent used in step size update. More...


Constructor & Destructor Documentation

◆ ArclengthContinuationSolver()

MAST::ArclengthContinuationSolver::ArclengthContinuationSolver ( )

Definition at line 31 of file arclength_continuation_solver.cpp.

◆ ~ArclengthContinuationSolver()

MAST::ArclengthContinuationSolver::~ArclengthContinuationSolver ( )
virtual

Definition at line 38 of file arclength_continuation_solver.cpp.

Member Function Documentation

◆ _dXdp()

void MAST::ArclengthContinuationSolver::_dXdp ( const libMesh::NumericVector< Real > &  X,
const MAST::Parameter &  p,
libMesh::NumericVector< Real > &  dfdp,
libMesh::NumericVector< Real > &  dXdp
)
protectedvirtual

Definition at line 125 of file arclength_continuation_solver.cpp.

◆ _g() [1/2]

Real MAST::ArclengthContinuationSolver::_g ( const libMesh::NumericVector< Real > &  X,
const MAST::Parameter &  p
)
protectedvirtual

\[ g(X, p, ds) = X_{scale} * (X-X0) (dX/ds)_{scaled} + p_{scale} * (p-p0) (dp/ds)_{scaled} - ds_{scaled} = 0 \]

Implements MAST::ContinuationSolverBase.

Definition at line 176 of file arclength_continuation_solver.cpp.

◆ _g() [2/2]

void MAST::ArclengthContinuationSolver::_g ( const libMesh::NumericVector< Real > &  X,
const MAST::Parameter &  p,
libMesh::NumericVector< Real > &  dfdp,
libMesh::NumericVector< Real > &  dXdp,
Real &  g,
Real &  dgdp,
libMesh::NumericVector< Real > *  dgdX
)
protected

\begin{eqnarray*} g(X, p, ds) & = & X_{scale} * (X-X0) (dX/ds)_{scaled} + p_{scale} * (p-p0) (dp/ds)_{scaled} - ds_{scaled} = 0 \\ dg/dp & = & p_{scale} * (dp/ds)_{scaled} \\ dg/dX & = & X_{scale} * (dX/ds)_{scaled} \end{eqnarray*}

Definition at line 194 of file arclength_continuation_solver.cpp.

◆ _reset_iterations()

virtual void MAST::ArclengthContinuationSolver::_reset_iterations ( )
inlineprotectedvirtual

method resets any data if a soltion step is restarted.

Nothing to be done here.

Implements MAST::ContinuationSolverBase.

Definition at line 101 of file arclength_continuation_solver.h.

◆ _save_iteration_data()

virtual void MAST::ArclengthContinuationSolver::_save_iteration_data ( )
inlineprotectedvirtual

method saves any data for possible resuse if the solution step is restarted.

Nothing to be done for this solver.

Implements MAST::ContinuationSolverBase.

Definition at line 95 of file arclength_continuation_solver.h.

◆ _solve_NR_iterate()

void MAST::ArclengthContinuationSolver::_solve_NR_iterate ( libMesh::NumericVector< Real > &  X,
MAST::Parameter &  p
)
protectedvirtual

Implements MAST::ContinuationSolverBase.

Definition at line 79 of file arclength_continuation_solver.cpp.

◆ initialize()

void MAST::ArclengthContinuationSolver::initialize ( Real  dp)
virtual

sets the arc length using a nonlinear solution using a step dp.

Implements MAST::ContinuationSolverBase.

Definition at line 44 of file arclength_continuation_solver.cpp.

Member Data Documentation

◆ _dpds_sign

Real MAST::ArclengthContinuationSolver::_dpds_sign
protected

Definition at line 104 of file arclength_continuation_solver.h.
